Sturdi-Wall®

Sturdi-Wall® is the first column anchor designed specifically for the Post-Frame Industry

Benefits of STURDI-WALL®

Made of 100% American made steel, robotically welded
Finally an effective solution to using post-frame with a concrete footer foundation
Easily fasten post-frame structure to concrete footer foundation
Eliminate error in wet-set placement of brackets
Hardware included for ease of installation

100% American-Made Steel, robotically welded

sturdi wall

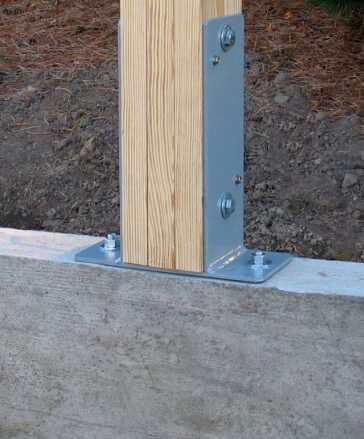

Connect post-frame structures to traditional concrete foundations such as monolithic slabs, formed walls, and existing concrete pads. Sturdi-Wall® brackets are a heavy-duty anchor system used for new construction, post-repair, renovations, and more. ICC-ES certified Sturdi-Wall® brackets are certified by the International Code Council as complying with international building codes. Certification from ICC enables builders to more quickly attain necessary project approvals and permits.

Sturdi-Wall® Design

Engineered column anchors take the guessing out of design work, and a powder-coated finish adds refinement to any project. Building on concrete eliminates the problems inherent with wood foundations.

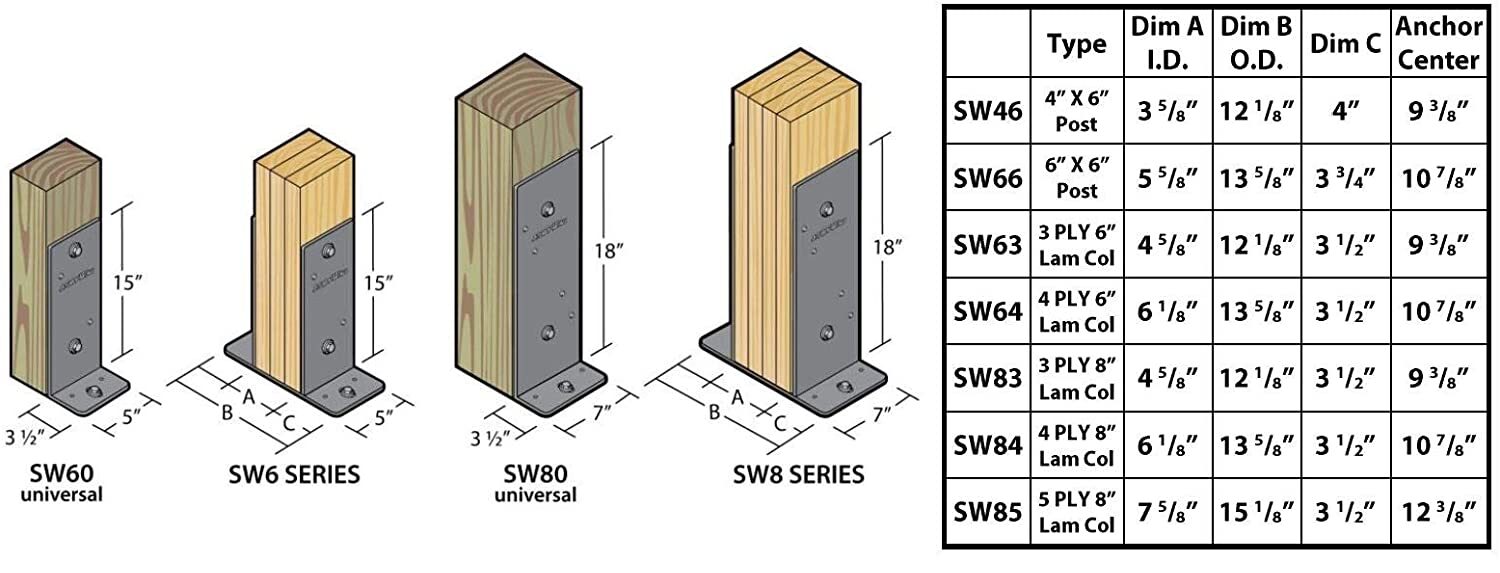

Sturdi-Wall® Models

• SW46 – 4×6 Post
• SW66 – 6×6 Post
• SW88 – 8×8 Post
• SW63 – 3Ply 2×6 Laminated Column
• SW64 – 4Ply 2×6 Laminated Column
• SW83 – 3Ply 2×8 Laminated Column
• SW84 – 4Ply 2×8 Laminated Column
• SW85 – 5ply 2×8 Laminated Column or 8×8 Post
• SW60 – 2×6 Column “L” Bracket
• SW80 – 2×8 Column “L” Bracket
• SW6C – 6” Universal – Corner
